M9重型伺服激光封邊機

信息來源：濟南品脈數控設備有限公司 文章作者： 發布時間：2026-08-15 15:59:58 點擊量：

伺服控制，激光封邊，細節盡顯卓越
Servo control, laser edge sealing, every detail showcases excellence
伺服電機精準控制，激光無縫封邊，0.1mm精準貼合，99.9%完美覆蓋，細節盡顯卓越品質。
Servo motor for precise control, laser for seamless edge sealing, 0.1mm precise fitting, 99.9% perfect coverage, every detail showcases the outstanding quality.

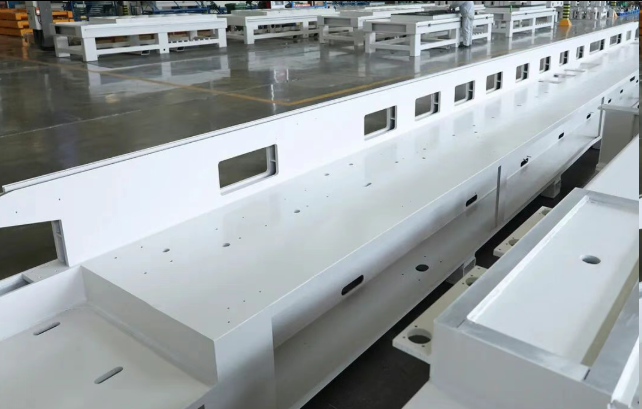

重型鋼軌一體式床身結構
Heavy-duty steel rail integrated bed structure
采用加厚鋼板焊接，退火去應力處理，大型龍門精銑加工。一體式鋼結構導軌，厚度達2公分以上，設備高速運行更平穩。
Using thickened steel plate welding, annealing stress treatment, large gantry finishing milling. Integrated steel structure guide rail, thickness of more than 2 cm, equipment high-speed operation more stable.

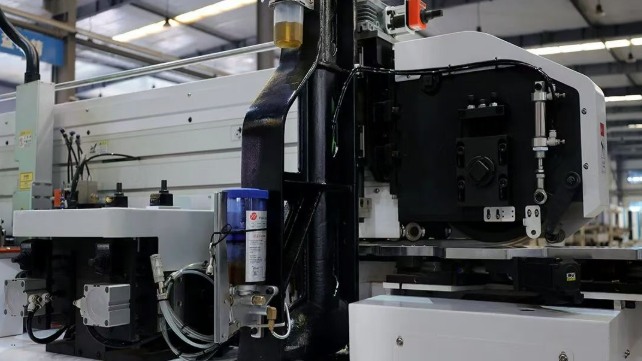

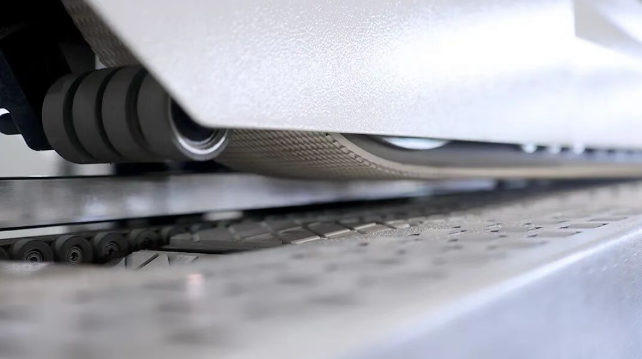

鋼制履帶壓料結構
Steel track press construction
高強度高鋁梁壓梁結構，高耐磨高柔性履帶，最大程度保證板材輸送穩定性和各封邊工序高精度配合。
High strength steel compression beam structure, high wear-resistant and flexible track, to ensure the maximum stability of plate transportation and each edge sealing process with high precision.

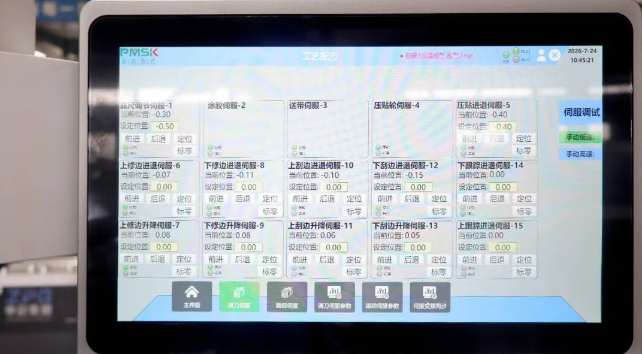

智控控制系統，觸屏操控，快速調節

Intelligent control system, touchscreen operation, quick adjustment

系統穩定性高，可視化界面，觸屏操作，所有功能均可快速調節。

The system has high stability, a visual interface, touchscreen operation, and all functions can be adjusted quickly.

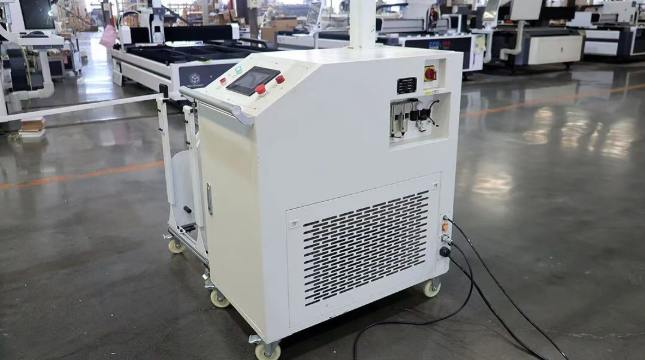

高品質激光裝置

High quality laser device

采用高功率，高精度，高穩定性激光器，運行高速穩定，封邊品質卓越。

Using high power, high precision, high stability laser, running high speed and stability, edge sealing quality is excellent.

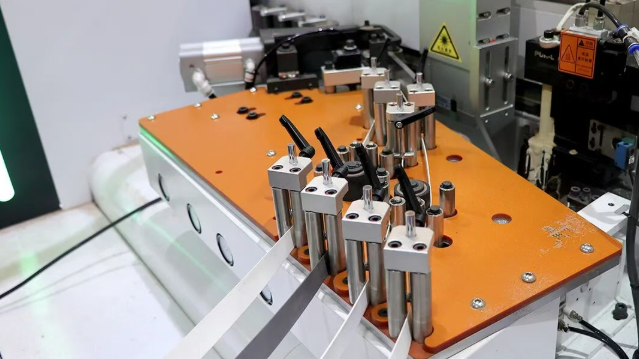

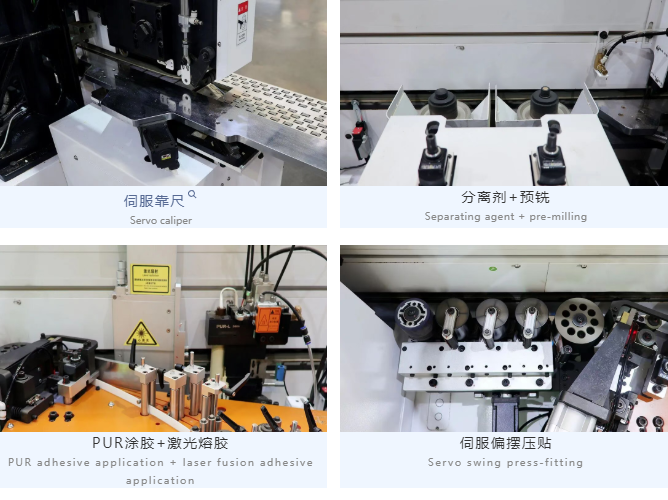

多通道伺服送帶

Multi-channel servo conveyor belt

快速切換封邊帶顏色，伺服送帶，保證封邊帶精準穩定傳送。

Quickly switch the color of the edge banding, and use the servo to feed the banding, ensuring its precise and stable transmission.

重型鑄鐵支撐立柱

Heavy cast iron support columns

重型鑄鐵立柱，融合高強度力學設計，承重能力強，穩定性好，恒久保持封邊性能。

Heavy-duty cast iron columns, integrating high-strength mechanical design, have strong load-bearing capacity, excellent stability, and can consistently maintain the edge sealing performance.

機型/Models	PE-M9
封邊帶厚度 Edge tape thickness	0.4~3mm
封邊帶寬度 Edge tape width	12~65mm
板料厚度 Panel thickness	10~60mm
板材寬度 Panel width	≥60mm
送料速度 Feeding speed	0~26m/min
工作氣壓 Working air pressure	≧ 0.7Mpa
總功率 Total power	25KW
吸塵口徑 Dust pipe diameter	φ100mm×4
重量 Equipment weight	6000Kg
外形尺寸 Overall size	10500×1050×1850mm
